Part 4: Deploy a Module

Goal: Deploy your inspector to run on the machine autonomously.

Skills: Module packaging, registry deployment, tabular data capture.

Time: ~10 min

What You’ll Do

In Part 3, you built inspection logic that runs from your laptop. That’s great for development, but in production the code needs to run on the machine itself—so it works even when your laptop is closed.

The module generator already created most of what you need:

• cmd/module/main.go—module entry point
• meta.json—registry metadata
• Model registration in init()

You just need to build, package, and deploy.

4.1 Review the Generated Module Structure

The generator already created everything needed to run as a module. Let’s review what’s there.

cmd/module/main.go

func main() {
    module.ModularMain(
        resource.APIModel{API: generic.API, Model: inspectionmodule.Inspector},
    )
}

This connects your module to viam-server and registers the inspector model. When you add this service to your machine configuration, viam-server uses this entry point to create and manage instances. You don’t need to modify it.

module.go provides model registration in init():

The generator created an init() function that registers your model:

var Inspector = resource.NewModel("your-namespace", "inspection-module", "inspector")

func init() {
    resource.RegisterService(generic.API, Inspector,
        resource.Registration[resource.Resource, *Config]{
            Constructor: newInspectionModuleInspector,
        },
    )
}

Note the two uses of “inspector” here:

• Inspector (capital I)—the Go variable name, exported so main.go can reference it
• "inspector" (lowercase, in quotes)—a string that becomes the third part of the model triplet your-namespace:inspection-module:inspector

This init() function runs automatically when the module starts, telling viam-server how to create instances of your service.

meta.json Registry metadata:

{
  "module_id": "your-namespace:inspection-module",
  "visibility": "private",
  "models": [
    {
      "api": "rdk:service:generic",
      "model": "your-namespace:inspection-module:inspector"
    }
  ],
  "entrypoint": "bin/inspection-module"
}

This tells the registry what your module provides.

4.2 Build and Upload Your Module

Update the module’s model list:

The module was already registered in the Viam registry when you ran viam module generate in Part 3 (you answered “Yes” to “Register module”). Now you need to update its model metadata. First, build a local binary:

make

Then run update-models to detect which models your module provides and update meta.json:

viam module update-models --binary /full/path/to/bin/inspection-module

Replace /full/path/to/ with the absolute path to your module directory.

Cross-compile for the target platform:

Your module will run inside a Linux container, not on your development machine. Even if your Mac and the container both use ARM processors, a macOS binary won’t run on Linux—you need to cross-compile. Cross-compilation also requires disabling CGO (Go’s C interop) and using the no_cgo build tag.

CGO_ENABLED=0 GOOS=linux GOARCH=arm64 go build -tags no_cgo -o bin/inspection-module ./cmd/module

CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -tags no_cgo -o bin/inspection-module ./cmd/module

CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -tags no_cgo -o bin/inspection-module ./cmd/module

go build -o bin/inspection-module ./cmd/module

go build -o bin/inspection-module ./cmd/module

Package for upload:

tar czf module.tar.gz meta.json bin/

Upload to the registry:

The --platform flag must match the architecture you compiled for:

viam module upload --version 0.0.1 --platform linux/arm64 --upload module.tar.gz

viam module upload --version 0.0.1 --platform linux/amd64 --upload module.tar.gz

viam module upload --version 0.0.1 --platform linux/amd64 --upload module.tar.gz

viam module upload --version 0.0.1 --platform linux/amd64 --upload module.tar.gz

viam module upload --version 0.0.1 --platform linux/arm64 --upload module.tar.gz

4.3 Add the Module to Your Machine

Add the inspector service:

1. In the Viam app, go to your machine’s Configure tab
2. Click + next to your machine part
3. Select Service
4. Search for your model (for example, your-namespace:inspection-module:inspector)
5. Name it inspector-service
6. Click Create

When you add a service from the registry, the module that provides it is added automatically.

Configure the service attributes:

{
  "camera": "inspection-cam",
  "vision": "vision-service"
}

Click Save.

Verify it started:

1. Go to the Logs tab
2. Look for startup messages from the inspector module
3. You should see it initialize and connect to the camera and vision service

Test the inspector:

1. In the Configure tab, click on inspector-service to open its configuration panel
2. Expand Test card at the bottom
3. In the DoCommand field, enter {"detect": true}
4. Click Execute
5. You should see a response with label and confidence values
6. Click Execute several more times to see different detections as cans pass beneath the inspection-cam

The module is now ready. You’ll configure automatic detection in the next section.

4.4 Configure Detection Data Capture

In Part 2, you captured images from the vision service. Those images are great for visual review, but they’re binary data—you can’t query them with SQL. Now you’ll configure tabular data capture on your inspector’s DoCommand, which will let you query detection results.

Add inspector-service as a data manager dependency:

The data manager needs to know about your inspector service before it can capture data from it. You’ll add this dependency in the JSON configuration.

1. In the Configure tab, click JSON in the upper left

2. Find the data-service entry in the services array

3. Add "depends_on": ["inspector-service"] to the data-service configuration:

   {
     "name": "data-service",
     "api": "rdk:service:data_manager",
     "model": "rdk:builtin:builtin",
     "attributes": { ... },
     "depends_on": ["inspector-service"]
   }


4. Click Save

This tells viam-server to wait for inspector-service to initialize before the data manager tries to capture data from it.

Enable data capture on the inspector:

1. In the Configure tab, click on inspector-service to open its configuration panel

2. Find the Data capture section and click Add method

3. Select the method: DoCommand

4. Set Frequency (hz) to 0.5 (captures every 2 seconds)

5. In the Additional parameters section, add the DoCommand input:

   {
     "detect": true
   }


6. Save your configuration

This configuration tells the data manager to periodically call DoCommand({"detect": true}) on your inspector and capture the response—which includes label and confidence.

Query detection results:

After a few minutes of data collection, you can query the results:

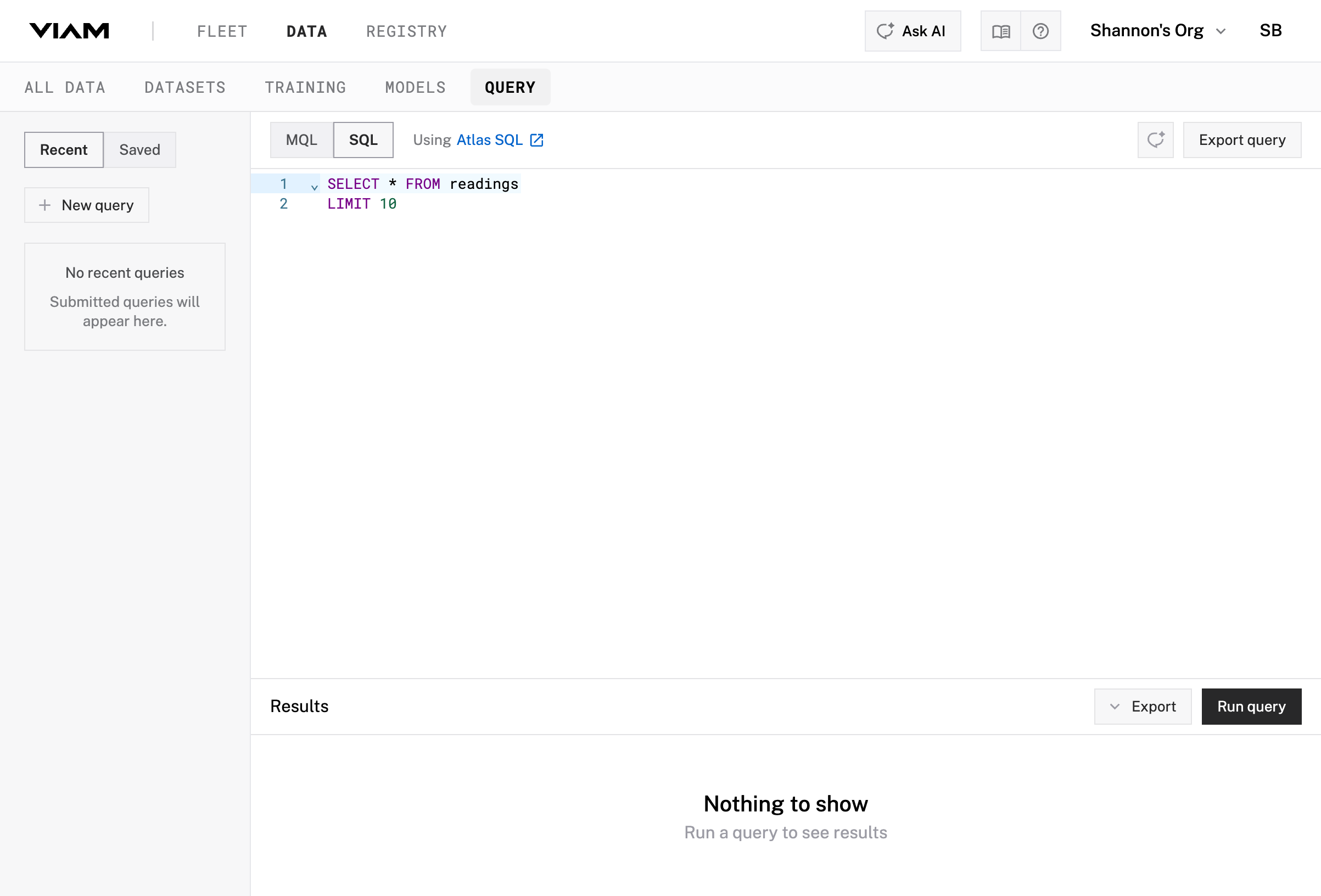

1. Open the Data tab in the Viam app

2. Click Query

3. Select SQL as your query language



4. Run a query to see recent detections:

   SELECT time_received, component_name, data
   FROM readings
   ORDER BY time_received DESC
   LIMIT 10


   You can also filter to show only failures:

   SELECT time_received,
          data.docommand_output.label,
          data.docommand_output.confidence
   FROM readings
   WHERE data.docommand_output.label = 'FAIL'
   ORDER BY time_received DESC
   LIMIT 10


Understanding the data structure:

Each captured detection is stored as a JSON document. Here’s what the data looks like:

{
  "component_name": "inspector-service",
  "component_type": "rdk:service:generic",
  "method_name": "DoCommand",
  "time_received": "2026-02-02T02:23:27.326Z",
  "data": {
    "docommand_output": {
      "label": "PASS",
      "confidence": 0.9999136328697205
    }
  },
  "additional_parameters": {
    "docommand_input": {
      "detect": true
    }
  },
  "organization_id": "...",
  "location_id": "...",
  "robot_id": "...",
  "part_id": "..."
}

The key fields for analysis are nested under data.docommand_output:

• label: The detection result—PASS, FAIL, or NO_DETECTION
• confidence: How confident the model is (0.0 to 1.0)

Querying with MQL:

You can also query using MQL (MongoDB Query Language), which is useful for aggregations. Select MQL in the Query interface. For example, to count failures by hour:

[
  {
    $match: {
      component_name: "inspector-service",
      "data.docommand_output.label": "FAIL",
    },
  },
  {
    $group: {
      _id: { $dateTrunc: { date: "$time_received", unit: "hour" } },
      count: { $sum: 1 },
    },
  },
  { $sort: { _id: -1 } },
];

You’ll use MQL aggregation pipelines in Part 5 to build dashboard widgets.

4.5 Summary

You deployed your inspection logic as a Viam module:

1. Reviewed—the generator already created module structure and registration
2. Deployed—built, packaged, uploaded, configured
3. Configured data capture—detection results are now queryable

The development pattern:

• During development: CLI runs locally, uses remote hardware (fast iteration)
• In production: Module runs on machine, same code (autonomous operation)

Your inspection system now runs 24/7 detecting defects without your laptop connected.

Continue to Part 5: Productize →
