Phase 5: Perception-guided picking

In this phase you replace the fixed approach and grasp poses with live data from the camera: a vision service detects a block in the camera’s own frame, you compute an approach standoff from that detection, and the motion service plans a collision-free pick against it. The arm approaches in the camera frame while it is still at home, then descends onto the block in the gripper’s own frame.

Configure the vision pipeline

Perception here is a two-stage pipeline. A detector finds blocks in the camera’s 2D color image and returns a labeled bounding box for each. A segmenter then takes those 2D boxes, pulls the matching depth points from the camera, and fuses each into a 3D object point cloud with a real-world position. A 2D detection alone cannot tell you how far away a block is or where it sits in space; the segmenter is what turns “a block-shaped region of pixels” into “a block at this point in three dimensions.” You configure the two as separate vision services, wired so the segmenter depends on the detector.

Add the shape detector

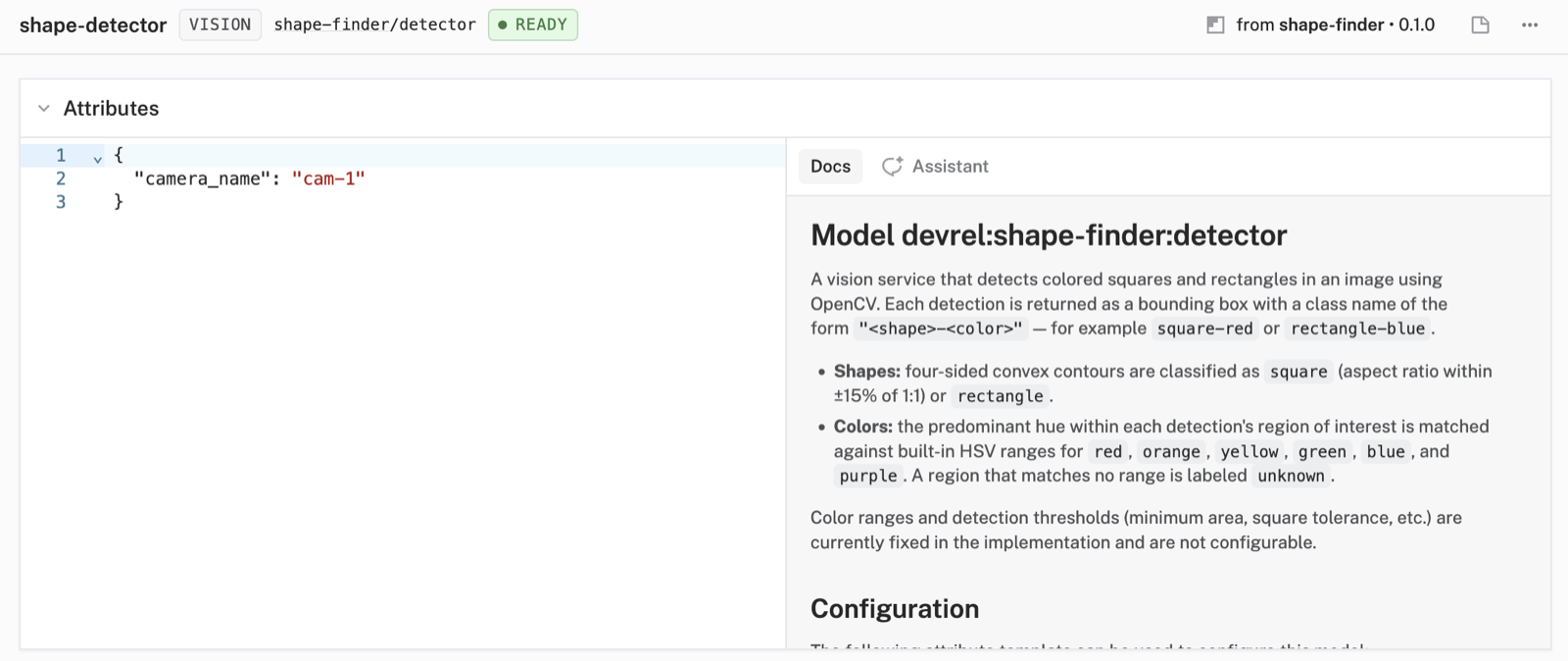

shape-finder/detector is a vision model that finds known block shapes in a color image and returns a labeled bounding box for each. On the Configure tab, click the + icon and select Blocks, search for shape-finder, select the shape-finder/detector model, and name it shape-detector. Set its one attribute:

{
  "camera_name": "cam-1"
}

camera_name tells the detector which camera to read color frames from, and it is also a dependency: shape-detector cannot run until cam-1 is online, the same dependency pattern you have already seen with gripper-1 and arm-1.

Add the segmenter

detections-to-segments reads a detector’s output together with the camera’s depth data and produces one point cloud per detection, each with an estimated size and 3D position. It is not a builtin: unlike the builtin motion service you meet later in this phase, this model does not ship inside viam-server; it comes from its own module, so saving this config triggers a new module download the same way viam:ufactory and viam:realsense did earlier in the workshop. Add it the same way you added the shape detector: click the + icon and select Blocks, search for detections-to-segments, select the vision/detections-to-segments result, and name it vision-segment. Set its attributes:

{
  "detector_name": "shape-detector",
  "camera_name": "cam-1",
  "mean_k": 5,
  "sigma": 1.25
}

detector_name and camera_name are dependencies, so vision-segment waits for both shape-detector and cam-1 before it starts. mean_k and sigma tune a statistical outlier filter that cleans up the depth points before fusion: mean_k is how many neighbors each point is compared against, and sigma is how far from the local average a point may sit before it is dropped as noise. The values here are sensible defaults; see detections-to-segments for the full attribute reference.

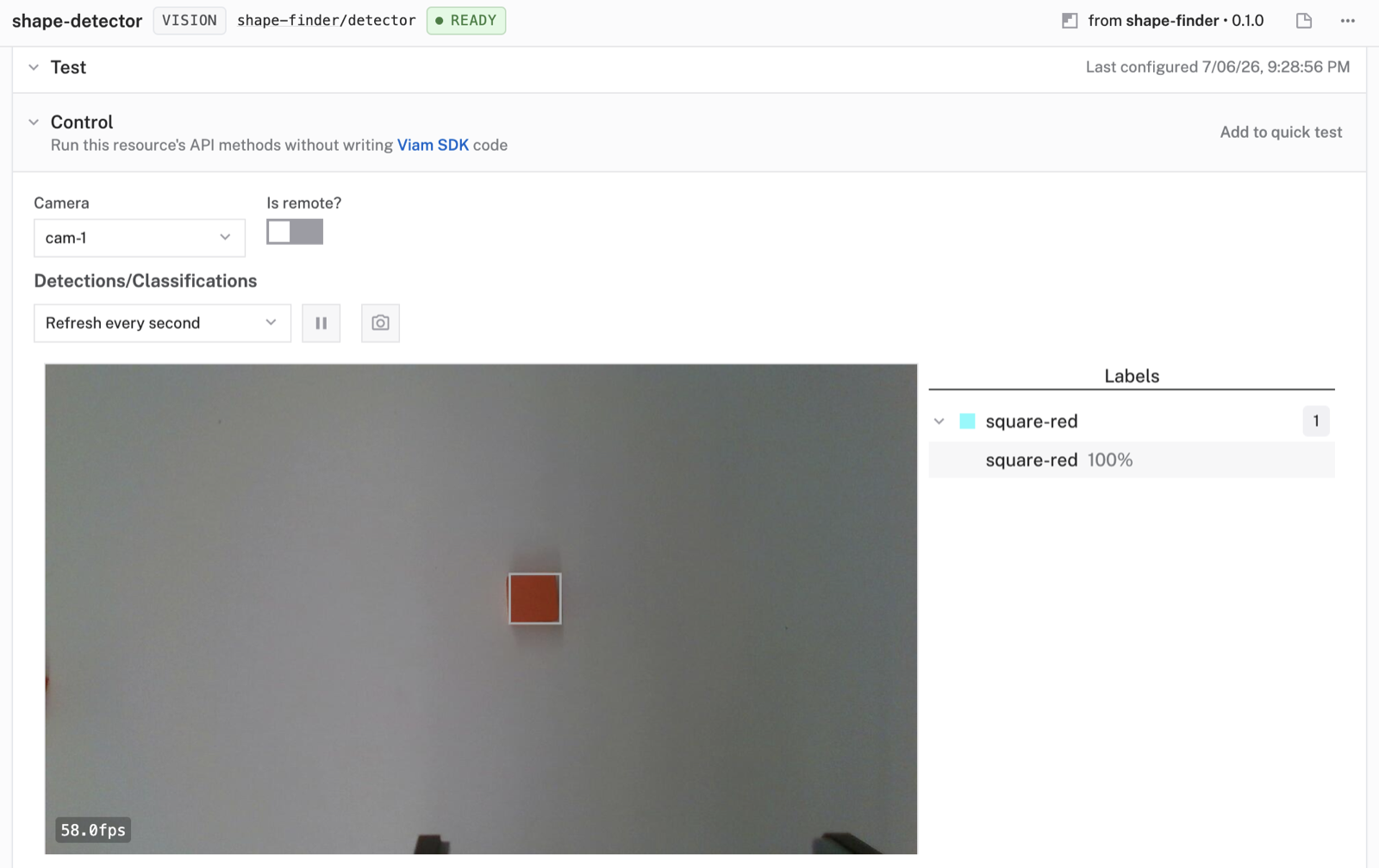

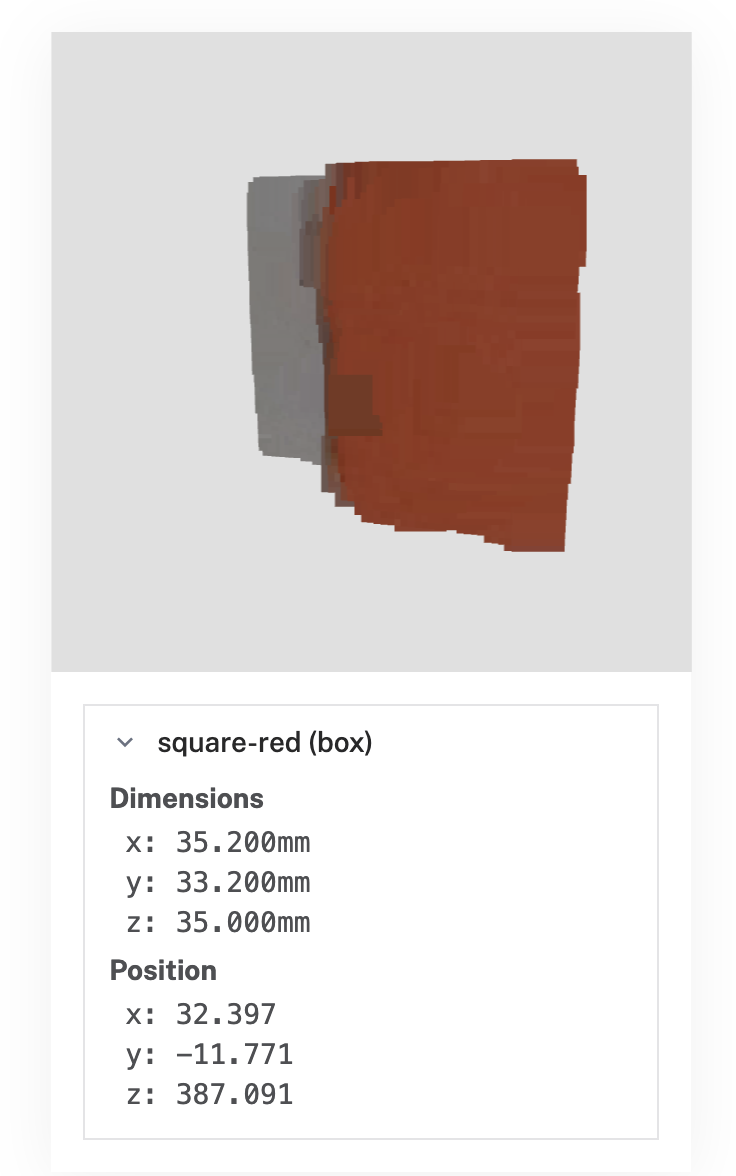

Save the config and open the Control tab. Find the vision-segment test card. You should see the detections coming from the shape-detector service and one or more segmented objects under the Object point clouds section after toggling Show object point clouds. Each segmented object is displayed as a small point cloud with a label matching the paired bounding-box detection, with estimated dimensions and 3D position from the perspective of the camera.

With the service live, go back to starter-script.py and uncomment the vision handle, the line marked # Used in Phase 5 that you left commented in Phase 4:

vision = VisionClient.from_robot(machine, "vision-segment")

Let the motion service place the gripper

Every pose that vision-segment returns is expressed in the cam-1 frame. That is the only frame the vision service knows about: it looked at pixels and depth values coming out of one camera, so the coordinates it hands back describe where a block sits relative to that camera’s own origin and orientation.

The pick uses the motion service to move the arm to that block. You never configured it: the motion service is one of a handful of services the RDK builds into viam-server itself, so it is present on every machine under the reserved name builtin, which is why builtin appeared in machine.resource_names even though there is no motion component on the Configure tab to point at. This builtin is the same concept from Phase 1: a rdk namespace model that ships inside viam-server and needs no module download, unlike vision-segment. Uncomment its handle in the script, the same way you uncommented the vision handle earlier in this phase:

motion = MotionClient.from_robot(machine, "builtin")

motion.move takes a PoseInFrame: a Pose paired with the name of the frame it is expressed in. For a single move issued right after detection, you can tag the destination reference_frame="cam-1" and the motion service will walk the frame graph for you, the same graph you watched move in the 3D scene tab when the cam-1 frame swung with the arm as you jogged joint 1. It knows the camera’s offset from the wrist, the wrist’s offset from the next joint, and so on down to the arm’s base at the world origin.

That works for one move, but here the arm works through two moves: approach and grasp. cam-1 is wrist-mounted, so it moves the instant the arm does, and motion.move resolves a cam-1-tagged destination against wherever cam-1 actually is at the moment that specific call runs, not where it was when you computed the pose. The first move to the approach standoff is fine, because the arm hasn’t left home-pose yet, so cam-1 is still where the detection assumed. But by the second move the arm has already traveled to the standoff, carrying cam-1 with it, so a second cam-1-tagged pose would resolve against the camera’s new position instead of the one the offset math assumed, and the grasp would drive to the wrong place. Descending in the gripper frame, later in this phase, is how you sidestep that trap: the grasp move is expressed relative to the gripper rather than the camera, so where cam-1 ended up no longer matters.

Frame tree (rooted at world):

One block, fixed on the table
        │
        ├─ approach read from an unfixed / unknown arm pose
        │     cam-1 frame depends on the arm pose
        │     → motion.move resolves cam-1 to a different spot each time  (unreliable)
        │
        ├─ approach read from home-pose (a known position)
        │     cam-1 frame is in a known, repeatable place
        │     → motion.move resolves cam-1 the same way on the first move   (reliable for first move)
        │
        └─ grasp descended in the gripper-1 frame
              the move is measured from the gripper, not cam-1
              → motion.move does not rely on cam-1 position (reliable for later moves)

It also matters exactly what motion.move moves. Two motions that sound similar are not the same thing:

• The Control tab’s arm card, and a direct Arm method, move the arm’s own end frame: the flange at the end of the last joint.
• motion.move(component_name="gripper-1", ...) moves the gripper-1 frame instead: the gripper’s tool center point (TCP), which sits further down the kinematic chain because the gripper is bolted on past the arm’s end.

A motion.move call names that component and a goal pose tagged with its reference frame:

await motion.move(
    component_name="gripper-1",
    destination=PoseInFrame(reference_frame="world", pose=target_pose),
)

Because you move gripper-1, every offset you compute later is measured to where you want the gripper’s TCP to end up, not the arm’s end. Keep that distinction in mind or the offset math will not make sense.

Detect from home (the wrist-camera rule)

One block, fixed on the table
        │
        ├─ read from an unfixed / unknown arm pose
        │     cam-1 frame depends on the arm pose
        │     → motion.move resolves cam-1 to a different spot each time  (unreliable)
        │
        └─ read from home-pose (a known position)
              cam-1 frame is in a known, repeatable place
              → motion.move resolves cam-1 the same way every time        (reliable)

The home-pose provides a good view of the workspace for the camera to detect objects to be picked up by the arm. Each pick-and-place cycle, the arm moves to the home pose and the shape-detector looks for known shapes. If it has detections, it provides them to the vision-segment service, which you query with vision.get_object_point_clouds. In your script, comment out the await approach.set_position(2) and await grasp.set_position(2) lines from Phase 4. You replace them with the block below, which detects the block and computes its pose instead of replaying a fixed one:

# Observe from home so the wrist-mounted camera frame is in a known position.
await home.set_position(2)

objects = await vision.get_object_point_clouds("cam-1")
if not objects:
    print("No objects detected")
    return False

# Largest object by point count. Use len(point_cloud).
obj = max(objects, key=lambda o: len(o.point_cloud))
geometry = obj.geometries.geometries[0]
label = geometry.label
print(f"Detected: {label}")

# The detected pose is already in the cam-1 frame; hand it to motion.move as-is.
obj_in_cam = PoseInFrame(reference_frame="cam-1", pose=geometry.center)

get_object_point_clouds returns one entry per object vision-segment fused together, each carrying its own point cloud and geometry. A workspace with several blocks in view returns several entries, so you need a rule for which one to pick this cycle. max(objects, key=lambda o: len(o.point_cloud)) picks the object with the largest point cloud, ordinarily the block closest to the camera or most fully in view. Each point_cloud is the object’s pointcloud data (PCD) stored as raw bytes, so len(o.point_cloud) measures its encoded size in bytes; that grows with the number of points, which makes it a reliable proxy for object size.

Add a print(obj_in_cam.pose) line right after obj_in_cam is set, and run the script. Watch the x, y, and z values it prints as you move a block around the table. Once the values look right, comment out or delete that print line before continuing to the next section: you are about to compute the approach_pose from obj_in_cam.pose, and the print statement was only there to sanity-check the raw detection.

Compute the approach pose and grasp descent

The approach offset is applied to obj_in_cam.pose, the block center in the cam-1 frame. In the camera frame, +z points out of the lens into the scene, so moving toward the camera, up and away from the block, is a negative z offset.

Because you observe from home-pose every cycle, the wrist camera looks down at the workspace from the same angle each time, so its depth axis stays roughly vertical and a z offset moves the target up and down as you would expect. This is one more reason the detect-from-home rule matters: it keeps the frame you are offsetting in a known orientation.

The vision service hands you the block’s center, obj_in_cam.pose, but that is not where you send the gripper: driving its TCP to the center would sink the fingers straight through the block. The approach pose is a standoff you derive from that center by shifting it along z. The workshop’s offset_pose helper does exactly that, moving a pose in z while leaving x, y, and orientation untouched:

def offset_pose(pose: Pose, z_offset_mm: float) -> Pose:
    """Raise or lower a pose in z while keeping x/y/orientation fixed."""
    return Pose(
        x=pose.x,
        y=pose.y,
        z=pose.z + z_offset_mm,
        o_x=pose.o_x,
        o_y=pose.o_y,
        o_z=pose.o_z,
        theta=pose.theta,
    )

For example, shifting a detected center 50 millimeters toward the camera looks like this:

# obj_in_cam.pose.z is the block center, say 387 mm from the camera
standoff = offset_pose(obj_in_cam.pose, -50)
# standoff.z is now 337 mm: same x and y, 50 mm nearer the camera

The approach pose below applies this same shift with the offset tuned for this gripper.

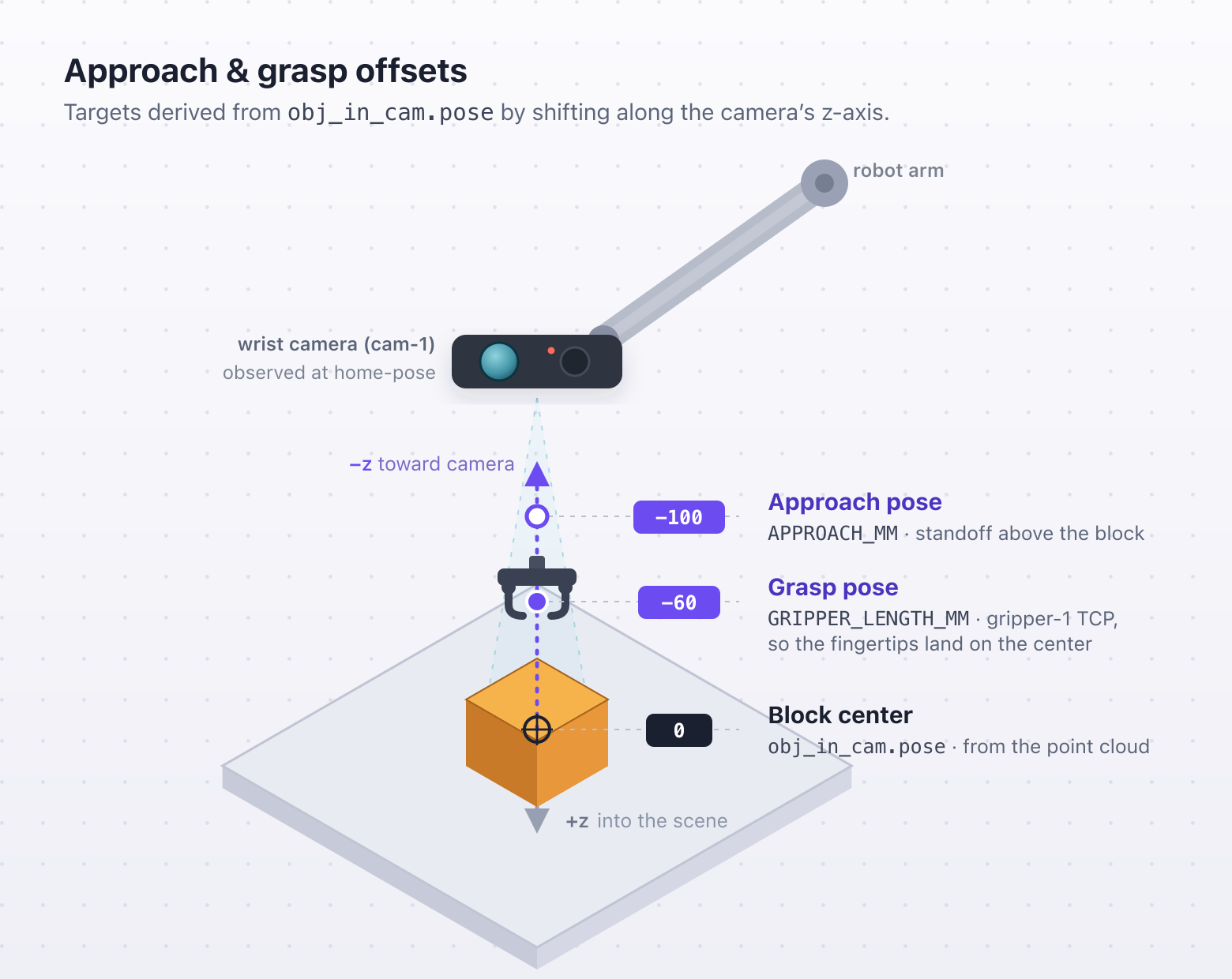

The approach pose is a standoff straight above the block, high enough that the gripper drops down onto it instead of bumping it from the side. We use APPROACH_MM = -100, which places the standoff 100 mm above the block’s center (the negative sign means “up”; more on that below). Applied to obj_in_cam.pose, the block’s bounding-box center:

approach_pose = offset_pose(obj_in_cam.pose, APPROACH_MM)

That’s plenty of clearance to descend cleanly, with room to spare if the detected pose is slightly off.

For the grasp, motion.move drives the gripper-1 TCP, but the fingers are what close around the block, and the fingertips stick out 60 mm ahead of the TCP (GRIPPER_LENGTH_MM = -60), so the fingertips reach the block’s center when the TCP stops 60 mm above it.

You already have the block located, so you don’t compute a second pose from scratch. You just move the gripper the remaining distance from the standoff down to the grasp. Work out that distance and its sign before revealing the answer.

grasp_distance = (APPROACH_MM - GRIPPER_LENGTH_MM) * -1  # 40 mm

Descend in the gripper frame

The approach move runs first, tagged reference_frame="cam-1". At that instant the arm is still at home-pose, so cam-1 sits exactly where the detection assumed and the motion service resolves the standoff correctly. This assumption shifts after that move; once the arm travels to the standoff it carries cam-1 with it, so any further pose you tag cam-1 resolves against the camera’s new position, not the one your offset math used.

Rather than chase the camera frame, re-anchoring the block pose after every move, you sidestep it. The gripper is now parked directly above the block at the standoff, already lined up to come straight down. All that is left is to drop the last stretch, and we can describe that move in the frame of the gripper instead of the camera: descend grasp_distance millimeters along the gripper’s own z axis.

Express that as a Pose in the gripper-1 frame:

# Descend the remaining distance straight down in the gripper's own frame.
grasp_distance = (APPROACH_MM - GRIPPER_LENGTH_MM) * -1
descend = PoseInFrame(
    reference_frame="gripper-1",
    pose=Pose(x=0, y=0, z=grasp_distance, o_x=0, o_y=0, o_z=1, theta=0),
)

A pose in the gripper-1 frame is measured from wherever the gripper currently is, so it is a relative move: x=0, y=0 holds it straight down the tool axis, and z=grasp_distance covers exactly the gap the standoff left open. The o_x=0, o_y=0, o_z=1, theta=0 orientation is the identity rotation, leaving the gripper pointing the way it already is: a pure translation, no reorientation on the way down.

Because this move is relative to the gripper and not the camera, where cam-1 ended up after the approach no longer matters. That is what removes the drift, with no frame conversion at all.

Run the full pick loop

With approach_pose and the gripper-frame descend in hand, assemble the full cycle:

# Move above the block in the camera frame, then open.
await motion.move(
    component_name="gripper-1",
    destination=PoseInFrame(reference_frame="cam-1", pose=approach_pose),
)
await gripper.open()
await asyncio.sleep(0.3)  # let the fingers finish opening

# Descend the remaining distance straight down in the gripper's frame.
await motion.move(
    component_name="gripper-1",
    destination=PoseInFrame(
        reference_frame="gripper-1",
        pose=Pose(x=0, y=0, z=grasp_distance, o_x=0, o_y=0, o_z=1, theta=0),
    ),
)
await gripper.grab()
await asyncio.sleep(0.3)  # finger gripper settle
await travel.set_position(2)
await place_pose.set_position(2)
await gripper.open()
await home.set_position(2)

This cycle picks with motion.move and places with the saved-pose switches from Phase 3. The approach lines up on the freshly detected block in the camera frame, resolved while the arm is still at home-pose; the grasp then descends in the gripper’s own frame, so it stays accurate even though the arm, and the wrist camera with it, moved to reach the standoff. Both pick moves get the Cartesian precision and obstacle-aware planning that motion.move provides. The place target never moves: it is the same bin in the same spot every time. The saved-pose switch replays fixed joint positions directly, without invoking the motion planner, so for a target that never changes it is simpler and just as reliable as planning a fresh path each cycle.

Run the script and watch the sequence come together in three stages.

First, the approach move lifts the gripper to the standoff above the detected block:

Next, the grasp move descends onto the block and the gripper closes:

Finally, the place and return steps carry the block to the bin and send the arm home:

Debugging guide

Work through these in order. The first one causes most of the rest. If you get stuck, compare your loop against the complete reference-solution.py in the companion repo.

• Did you detect from home-pose? This is the first thing to check for nearly every perception symptom below. If the await home.set_position(2) guard is missing before a get_object_point_clouds call, or if you added a second detection somewhere that skips it, every downstream pose is computed against the wrong camera position.
• No objects detected. Open the Control tab and run the vision-segment card by hand while a block sits in view. If that also returns nothing, check the shape-detector card on its own: a detector that finds nothing means the block is out of frame, or lighting has changed enough to affect the shape detection. If shape-detector finds the block but vision-segment does not, check that a block is close enough and clearly separated from the table surface for the depth fusion step to segment it.
• The pick point drifts from cycle to cycle, even for a block that has not moved. This is almost always the wrist-camera rule again: some code path is detecting from a pose other than home-pose. Print obj_in_cam.pose on every cycle and confirm the arm is fully settled at home-pose before each detection call.
• Motion planning fails, or the target looks unreachable. Open the 3D scene tab during the failing move and look at where the approach standoff or the grasp descent lands relative to the table and safety-wall geometry from Phase 3. A detected pose near a workspace boundary can place the standoff or the grasp point outside the region the planner is allowed to move through. If you skipped or under-measured the obstacle configuration in Phase 3, this is where it bites: geometry that does not match your physical setup makes the planner reject moves that are perfectly safe, or, worse, accept ones that are not. Revisit Teach the planner about obstacles and recheck your measurements before assuming the pose math is wrong.
• The grasp move plans past the block and heads into the table. The planner reports IK solutions failing on a claws-versus-table constraint, and the arm visibly travels too far instead of stopping at the block. The usual cause is a grasp_distance with the wrong sign or magnitude: a value larger than the 40 mm standoff gap drives the gripper straight through the block. Confirm grasp_distance is (APPROACH_MM - GRIPPER_LENGTH_MM) * -1, a positive 40 mm. The other cause is tagging the descent against a frame that rides on the arm: if the second motion.move is tagged reference_frame="cam-1" instead of reference_frame="gripper-1", it resolves against the camera’s position after the approach rather than descending relative to the gripper. Confirm the descent uses reference_frame="gripper-1", as in Descend in the gripper frame.

With a full perception-guided pick loop running end to end, you have every piece of the workshop’s core loop working from your own computer: detection, planned motion, and a reliable place. The next phase picks up from here to package this same script as a module that runs on the robot directly, with no laptop connection required once it is deployed. If you are stopping here, the wrap-up reviews what you built and where to go next.
